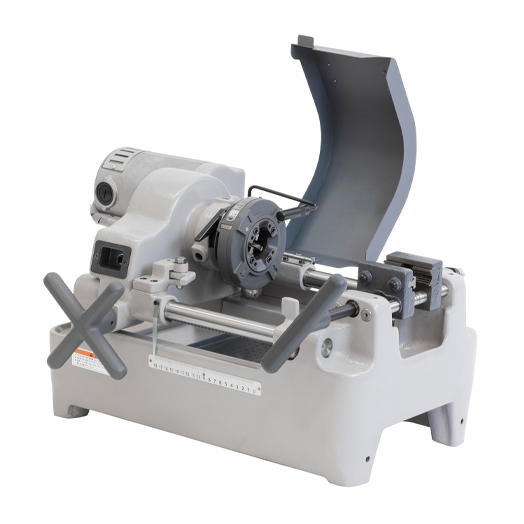

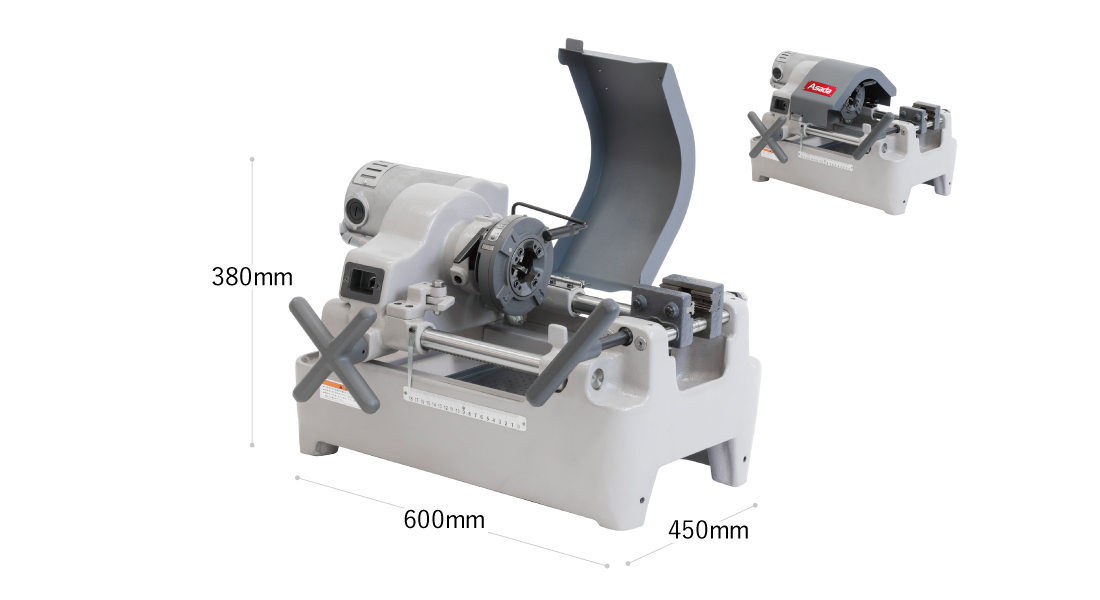

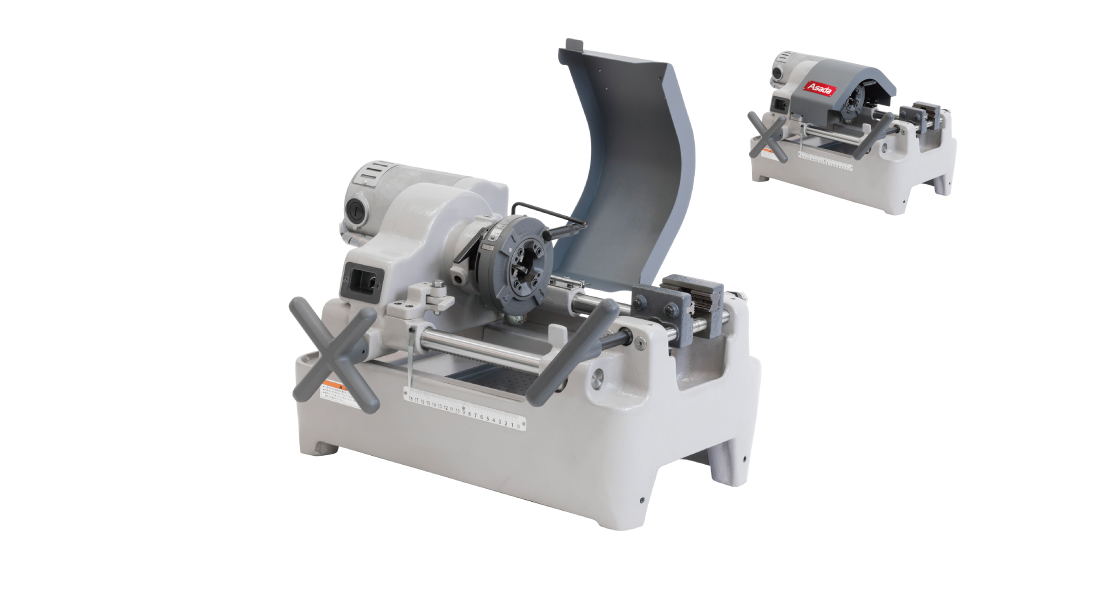

BOLT MACHINE 25Pro

BoltMachine
Bolt-Machine
Call Now : +91 9879346496

sales@kaaveer.com
mehul@kaaveer.com

  • For cutting bolt threads.
  • A specialized bolt cutting machine compatible with right-hand threads.
  • High-durability design with bearings in the main shaft.
  • Powerful cutting with a high-output motor.
  • Equipped with an automatic threading release device, it can process threads to the desired length in one go.
  • A large oil tank to improve cooling efficiency.
  • Bolts: M8-24 *Requires separate purchase

Specifications

Product nameBolt Machine 25 Pro
Code No.BM104
Threading abilityRight-hand thread W5/16″ to 1″ / Right-hand thread M8 to M24 (*)
mass45kg
Rotation speed80 min -1
motor100V・1,140W
stroke180mm
Standard accessoriesDie head: Right W5/16″ to 1″, Chaser: Right W1/2″, Right W5/8″ Threading oil (red) 4L (1 can), set lever, leg assembly

Features

boltmachine

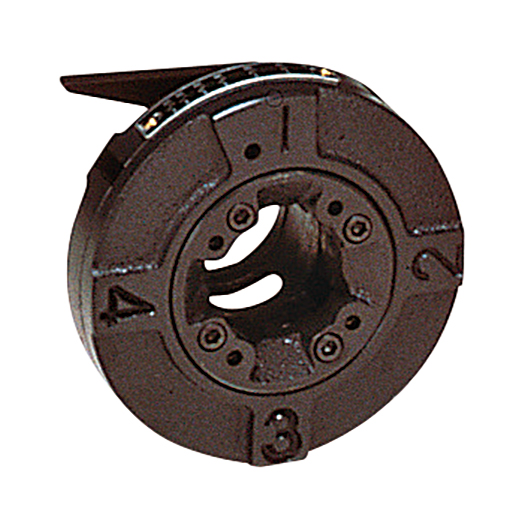

Die-Head for Bolt Machine

diesforbolt

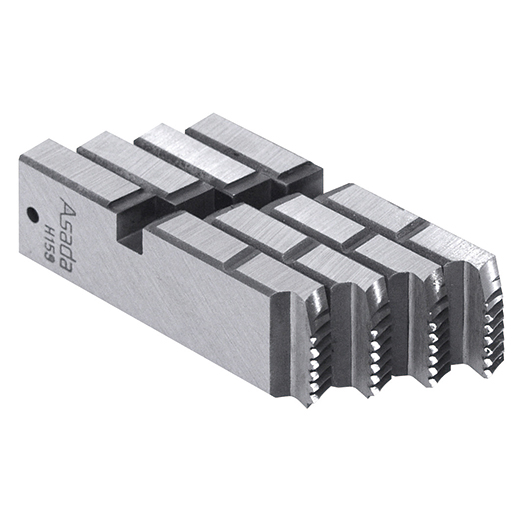

Dies for Bolt Thread

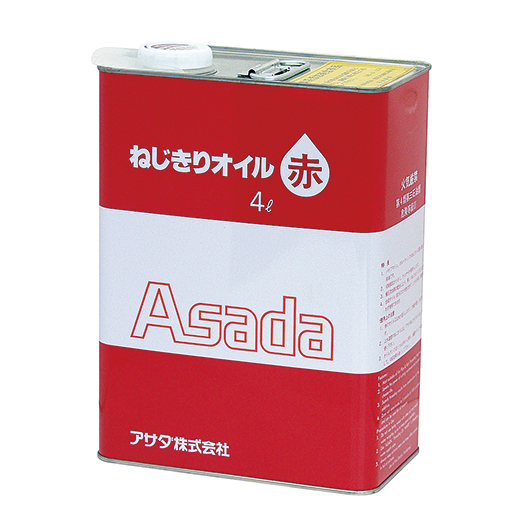

Threading Oil Red

ThreadCOil-black

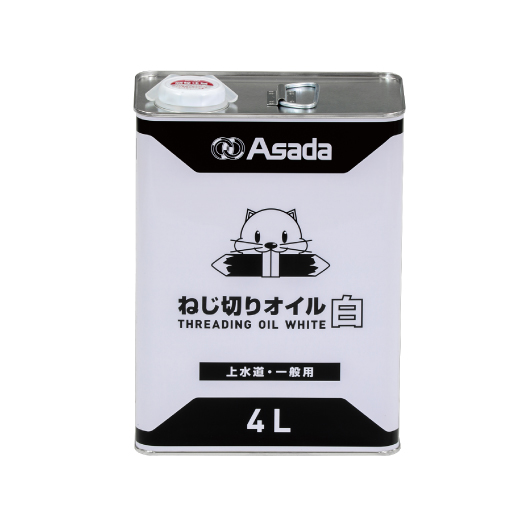

Threading Oil White

ThreadingOil_cool

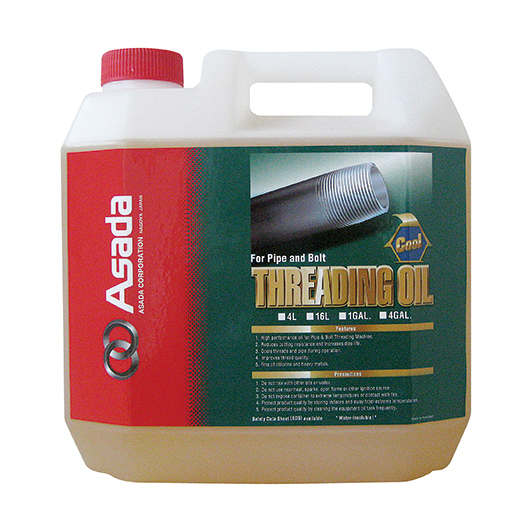

Threading Oil Cool

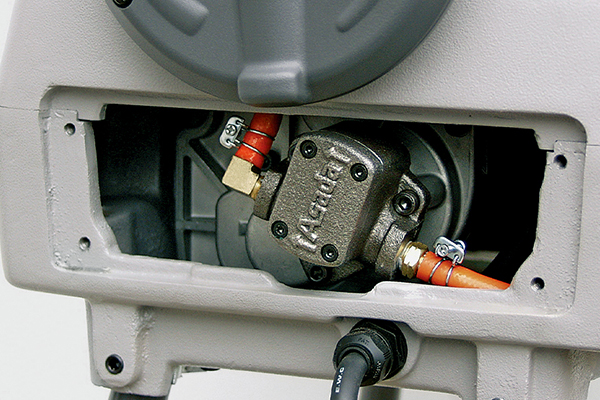

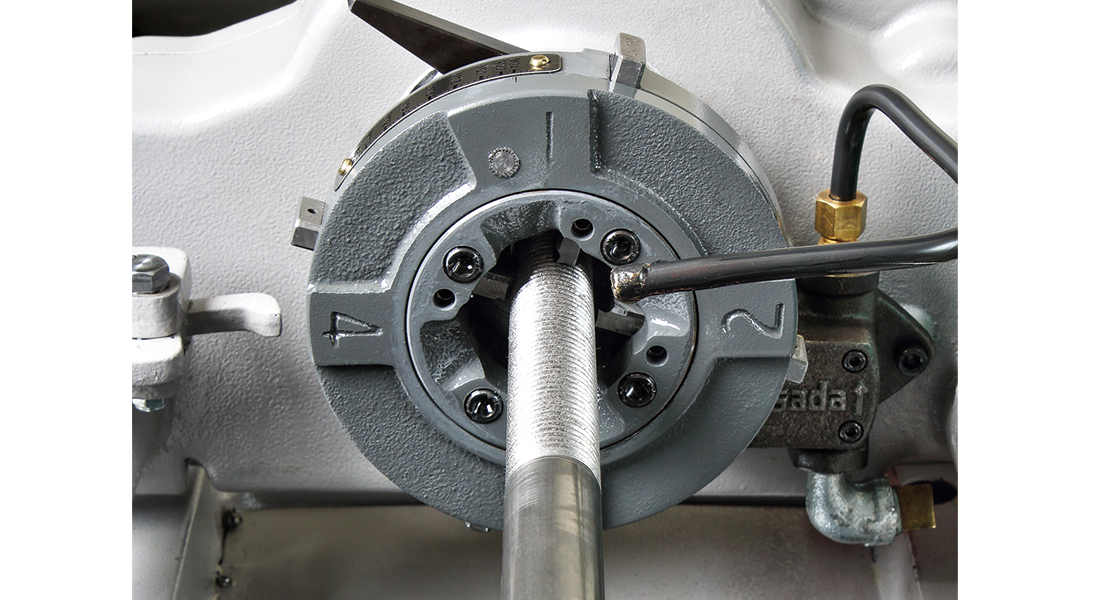

Stable oil supply

High capacity pump maintains sufficient oil flow even at low rotation.
