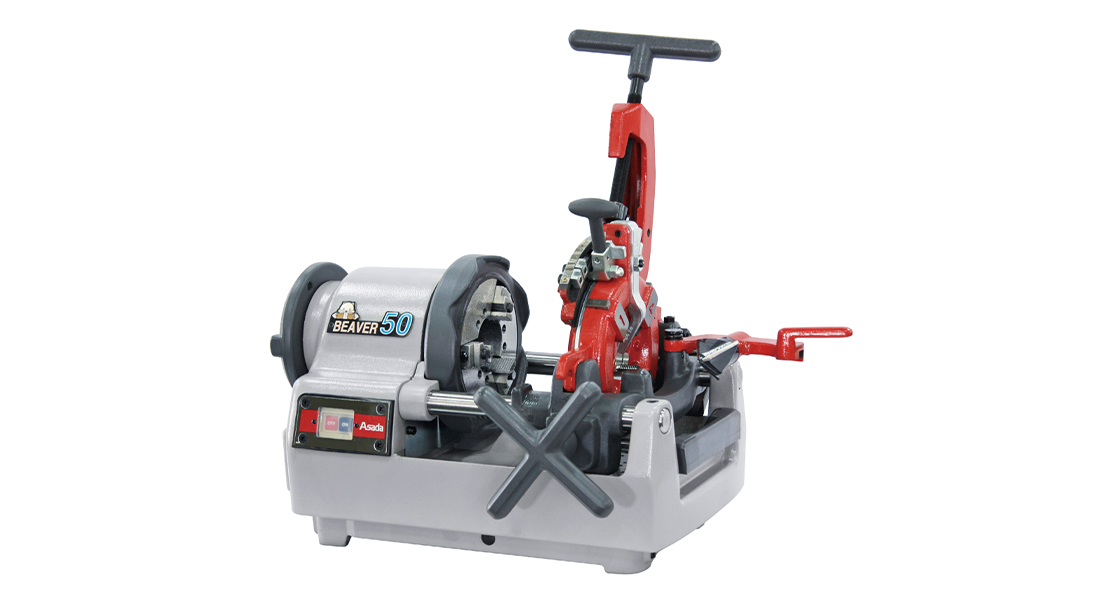

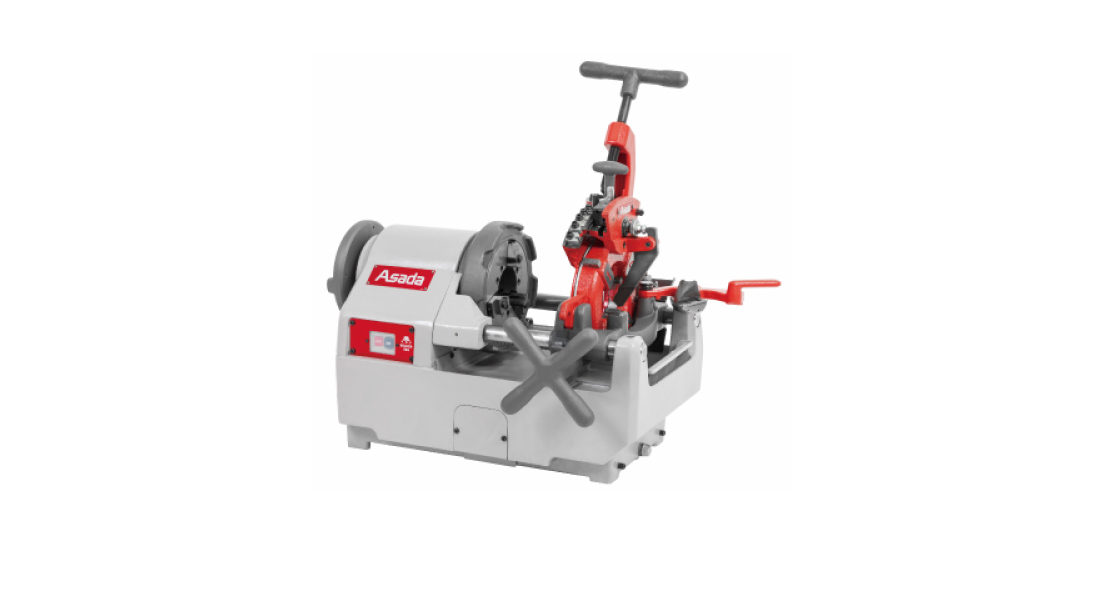

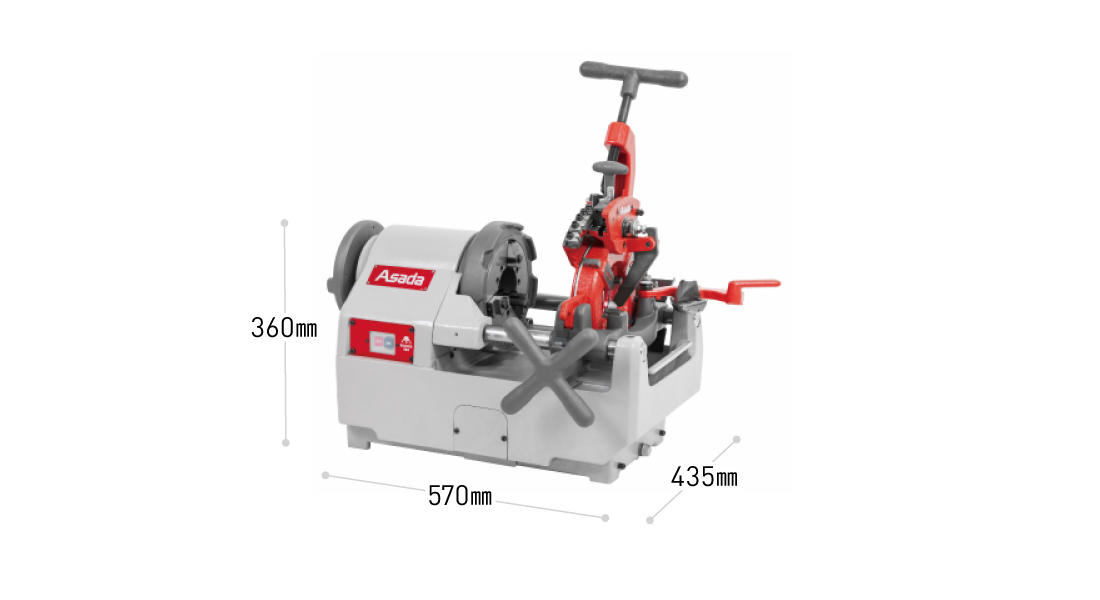

Threading Machines Beaver 50 ~ 2″
- Pipe：PT1/4"~2" (PT1/4"～3/8" ※With optional accessories)
- Bolt：W3/8"～2"・M10～42 ※With optional accessories
- Conduit：C19～51mm・PF1/2"～2" ※With optional accessories
Specifications
| Item | Code No. | Weight | Standard accessories | Threading capacity | Spindle speed | Motor |
|---|---|---|---|---|---|---|
| BEAVER 50G BSPT MANUAL | BG51PS | 46kg | MANUAL DIE-HEAD： 1/2″～2″ DIES： 1/2″～3/4″, 1″～2″ THREADING OIL WHITE 4L (1CAN) | PT1/4″～2″ | 38min－1 | 220-240V, 750W |
| BEAVER 50G BSPT AUTO | BG51AS | 46kg | BEAVER AUTO DIE-HEAD： 1/2″～2″ DIES： 1/2″～3/4″, 1″～2″ THREADING OIL WHITE 4L (1CAN) | PT1/4″～2″ | 38min－1 | 220-240V, 750W |
| BEAVER 50G NPT MANUAL | BG51PN | 46kg | MANUAL DIE-HEAD： 1/2″～2″ DIES： 1/2″～3/4″, 1″～2″ THREADING OIL WHITE 4L (1CAN) | PT1/4″～2″ | 38min－1 | 220-240V, 750W |
| BEAVER 50G NPT MANUAL | BG51PN | 46kg | MANUAL DIE-HEAD： 1/2″～2″ DIES： 1/2″～3/4″, 1″～2″ THREADING OIL WHITE 4L (1CAN) | PT1/4″～2″ | 38min－1 | 220-240V, 750W |
Features

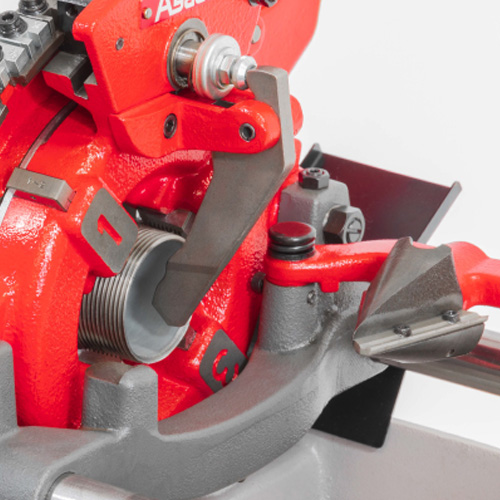

Accurate threading
Die-head with automatic profiling system and high durable dies.

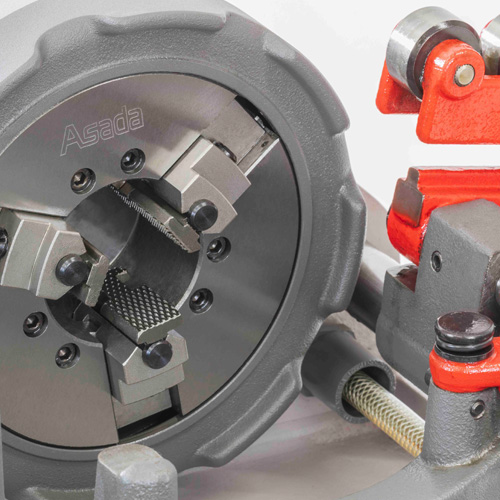

Slip-free chucking
Easy-to-grip outer ring and wider jaws grab material firmly.

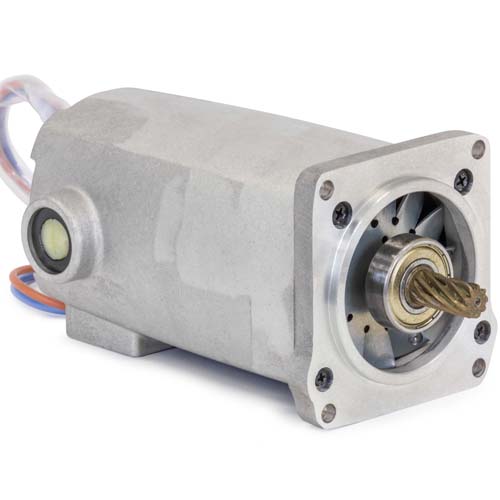

High power motor
Motor rotation is hard to drop even under poor electric condition.

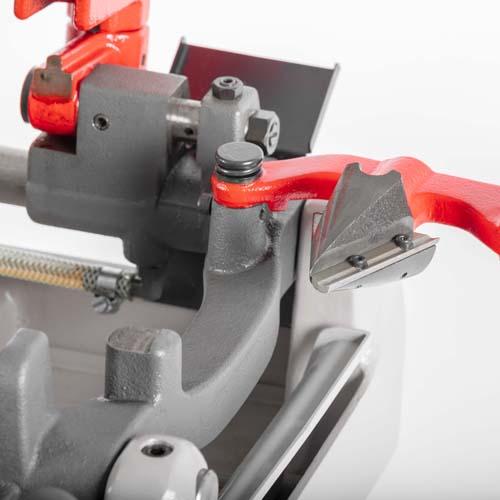

Superior sharpness & durability
Cutter & reamer blade are designed with most suitable shape.

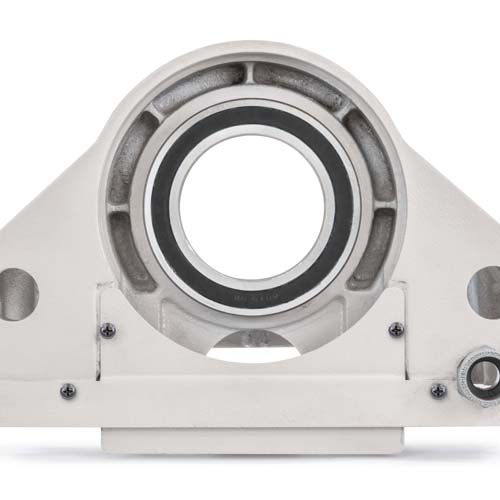

High durability spindle
Supported by high precision ball bearing.

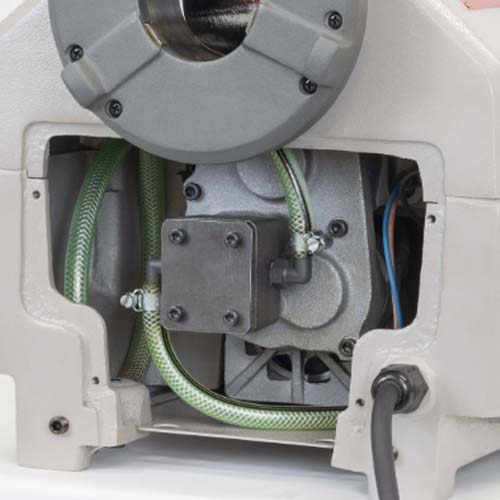

Stable oil supply
High capacity pump maintains sufficient oil flow even at low rotation.
High durability spindle
Supported by high precision ball bearing.
